Net Weight:0.339 kg

Packaging Dimension:14.90 x 15.30 x 4.30 cm

Manufacturer:SIEMENS

Model Number:6ES7522-1BL01-0AB0

Technology:SIMATIC S7-1500

Channels:32×24 V DC/0.5 A HF

Channel Configuration:32 channels in groups of 8

Current per Group:4 A per group

Diagnostic Features:Single-channel diagnostics

EMI Filter:Built-in for 230V 1 phase / 460V 3 phase

RFI Switch:For mains

Diode:Single-channel

Protection Level:Complete Protection

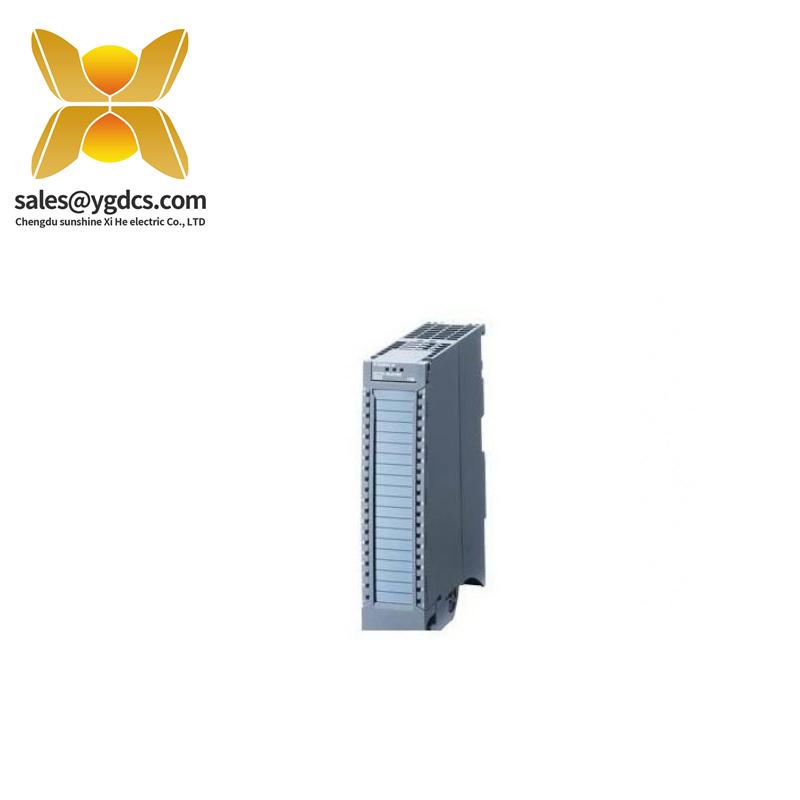

    The Siemens 6ES7522-1BL01-0AB0 Digital Output Module is a robust and versatile solution for industrial automation, featuring a compact design that facilitates seamless integration into various control systems. This module is engineered to deliver precise control over digital outputs, ensuring smooth operation in demanding environments.

    With its 32 channels organized in groups of 8, each capable of handling up to 4A at 24V DC, this module provides ample power for a wide range of applications, from basic on/off control to more complex signal processing tasks. The single-channel diagnosis feature enhances system reliability by allowing quick identification of faults, leading to reduced downtime and maintenance costs.

    The module’s isolated outputs offer an added layer of safety, preventing unintended electrical connections and ensuring the integrity of signals transmitted across the system. Its operating temperature range (-25°C to +60°C) and storage capabilities (-40°C to +85°C) make it suitable for deployment in various geographical locations and environmental conditions.

    Equipped with a substitute value function, this module ensures uninterrupted operation even when one or more channels fail, maintaining system functionality and efficiency. This feature is particularly beneficial in scenarios where continuous operation is critical, such as in manufacturing lines or process control systems.

    Designed to meet international industrial standards, the Siemens 6ES7522-1BL01-0AB0 Digital Output Module is a reliable choice for engineers and technicians seeking a high-quality, efficient, and safe component to enhance their automation projects. Its compatibility with Siemens’ SIMATIC S7-1500 system further simplifies integration and management within existing infrastructure.
