Product Type:Discrete I/O Module

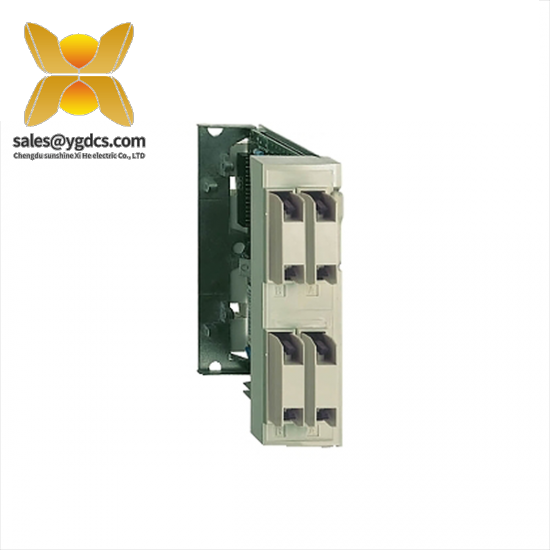

Product ID:TSXDMZ64DTK

Schneider Type Designation:Module

Modicon TSX Micro Automation Platform:Yes

Extended Product Range:Discrete Solid State I/O

DC Discrete Input Number:32

HE-10 Connector Discrete Input Voltage:24 V DC

Positive Discrete Output Number:32

HE-10 Connector Discrete Output Voltage:24 V DC

Discrete Output Current:0.1 mA

Power Dissipation (W):3.5 W by module, 0.15 W by channel, 5 W input

Product Weight:0.9 lb (US) / 0.41 kg

Operating Temperature Range:-25°C to +60°C

Humidity Range (Non-condensing):5% to 95%

Dimensions (mm):158 x 96 x 35

    The SCHNEIDER TSXDMZ64DTK is engineered to offer high performance and reliability for industrial automation applications, ensuring efficient data processing and control.

    Featuring 32 discrete inputs and 32 discrete outputs, this module provides extensive connectivity for complex control systems, supporting both positive and negative voltage configurations.

    Crafted with Schneider Electric’s renowned quality, the TSXDMZ64DTK is compatible with the Modicon TSX Micro platform, offering seamless integration and customization options.

    With its compact design and robust specifications, the TSXDMZ64DTK ensures optimal operation in a wide range of environmental conditions, from cold to warm climates.

    This module is ideal for applications requiring precise and reliable digital signal handling, including machine control, process monitoring, and data acquisition systems.
