Manufacturer:Reliance Electric

Product Number:0-60002-6

Function Description:DC Power Technology Module

Part Status:Now-obsolete Legacy

Connection Ports:Four large female connection ports (Feedback, Fwd Gates, Rev Gates, Fdbk & Gates)

Pin Configuration:18-pin or 14-pin connectors

Board Dimensions:Not specified, but fits standard PMI rack sizes

Weight:Not specified

    The Reliance Electric 0-60002-6 is a reliable and efficient DC Power Technology Module that integrates seamlessly into Reliance Electric’s drive systems.

     Its robust design features a front panel equipped with four large female connection ports for easy integration and connection to various field and armature signals.

     These connections are crucial for digitizing signals that will be used in field current and armature regulation algorithms, enhancing the overall performance of the drive system.

     Additionally, the module boasts a secure mounting mechanism with two screw points on the front panel, ensuring a stable installation within the PMI rack.

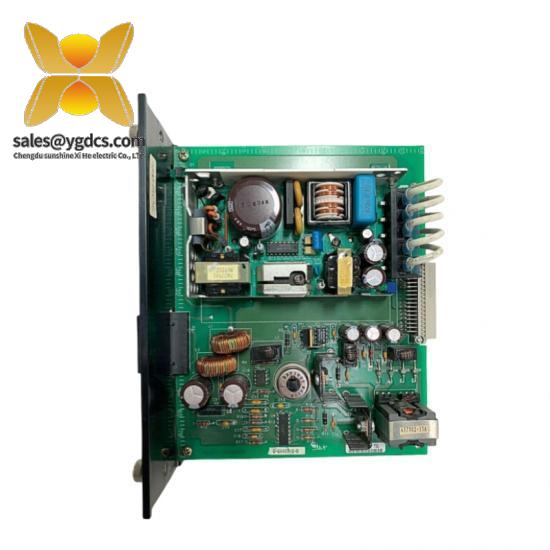

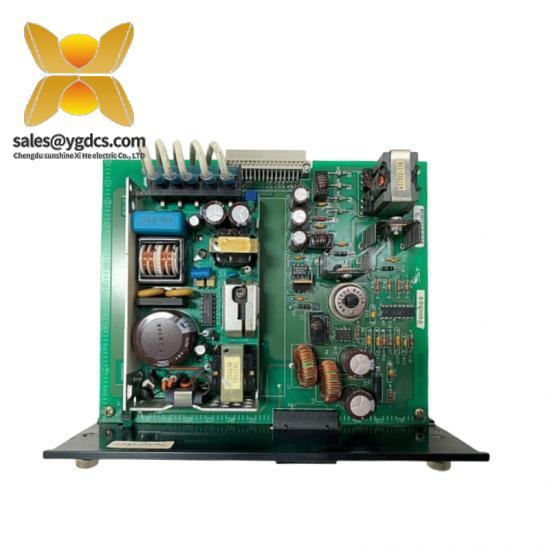

     The module also includes a connected circuit board, which is essential for processing and transmitting power signals accurately.
