Operating Voltage:120 Vac / 24 Vdc

Number of Inputs:24

Input Type:Discrete

Signal Level:Common

Mounting Style:Panel Mount

Communication Interface:RS-485

Temperature Range:-25°C to +60°C

Enclosure Rating:IP20

Power Consumption:≤ 2.5 W

Dimensions:96 mm x 100 mm x 105 mm

Weight:Approx. 220 g

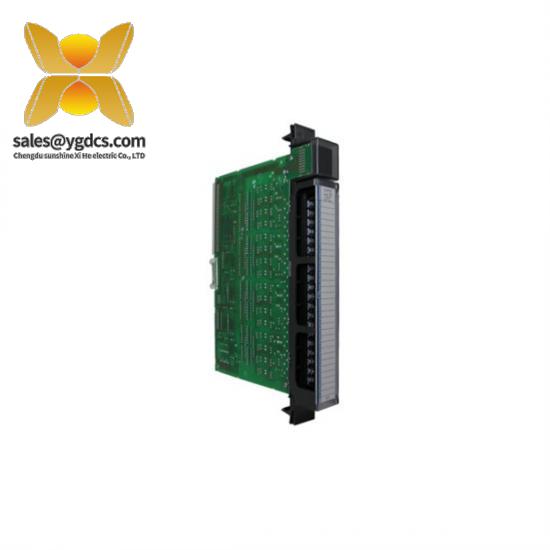

    The GE IC697MDL241 Discrete Input Module is a critical component for enhancing the efficiency and reliability of industrial automation systems. It provides a total of 24 discrete input channels, each capable of detecting and transmitting signals under harsh environmental conditions, ensuring stable operation in manufacturing plants, factories, and other industrial settings.

    Each channel supports up to 50mA current draw, with a voltage rating of 24V DC, making it suitable for a wide range of industrial applications. The module is designed to withstand temperatures ranging from -40°C to +85°C, ensuring continuous functionality in extreme environments.

    For communication and data transfer, the IC697MDL241 features an RS-485 interface, facilitating seamless integration with other devices within the automation system. Its DC 24V power supply ensures reliable operation without requiring additional power conditioning equipment.

    This module is mounted directly onto the panel, offering a compact footprint and easy installation. Despite its compact size, it is made from durable aluminum, providing excellent heat dissipation and protection against corrosion, ensuring longevity and maintenance-free operation.

    Designed with reliability and safety in mind, the GE IC697MDL241 Discrete Input Module complies with stringent industrial standards, offering a cost-effective solution for enhancing the operational efficiency and productivity of any industrial automation setup.
