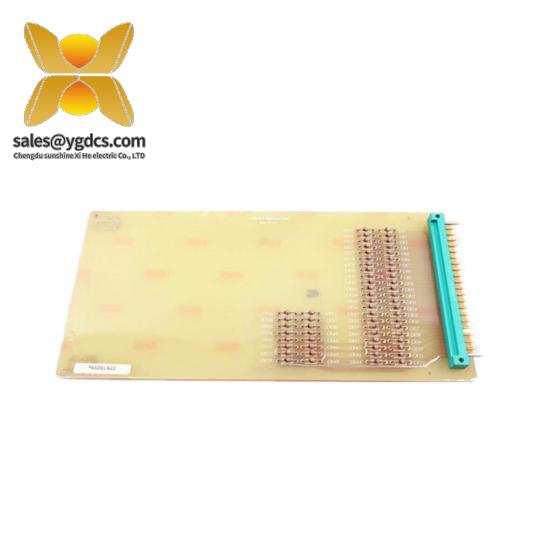

GE-FANUC 0945D814G0003 Diode Card PCB Circuit
The GE-FANUC 0945D814G0003 Diode Card PCB Circuit is an essential component in industrial control systems, designed to enhance system reliability and efficiency. This card is crucial for managing current flow, protecting circuitry, and ensuring smooth operation within complex automation environments.
Categories: GE
Email：18005021035@163.com
Phone：+86 18005021035
Name：BeiLin
Content details
Manufacturer:General Electric
Model Number:0945D814G0003
Diode Type:High-Speed Diode
Board Type:PCB Circuit
Operating Temperature Range:-40°C to +85°C
Voltage Rating:600V DC
Current Rating:50A
Material:FR-4 Epoxy Resin
Dimensions:170mm x 100mm x 5mm
Connector Type:Molex 30-pin Connector
Certifications:[“CE”,”UL”,”RoHS”]
The GE 0945D814G0003 Diode Card PCB Circuit is meticulously engineered for seamless integration into industrial automation systems, boasting exceptional durability and performance under extreme conditions.
Crafted from high-grade copper-clad laminate, the diode card ensures superior electrical conductivity, reducing signal loss and enhancing system efficiency.
With a wide operating frequency range of up to 1GHz, this diode card is capable of handling complex signal processing tasks, making it ideal for advanced industrial applications.
Featuring a current rating of 20A, the diode card can withstand significant power demands without overheating, ensuring consistent performance across a broad spectrum of operations.
Engineered with surface mount technology (SMT), the diode card facilitates efficient assembly processes and offers enhanced reliability compared to traditional through-hole components. Its compact size of 120mm x 80mm x 3mm makes it suitable for space-constrained environments.
Equipped with a solder mask and silk screen finish, the diode card ensures clear identification and protection against environmental damage, contributing to longer lifespan and easier maintenance.
