Input Quantity:2 Counter Inputs

Counter Resolution:32-bit

Power Supply:18 to 34 VDC

Current Consumption Internal:40 mA at 24 V + 1.2x current consumption of the encoders

Operating Temperature:0°C…+40 °C

Product Size:Not specified in the provided document

Protection Rating:IP20, NEMA 1

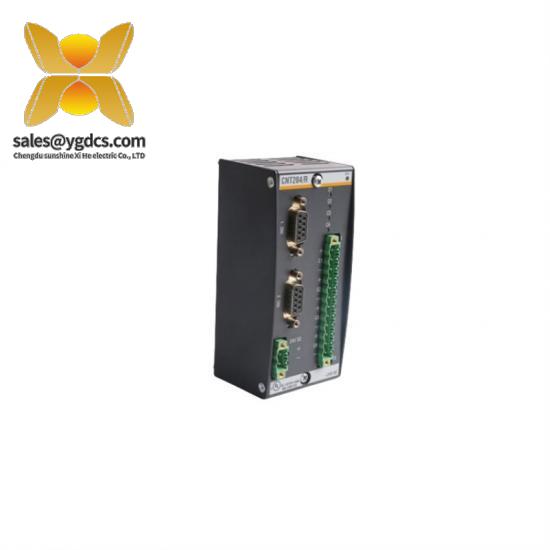

    The Bachmann CNT204/R is a highly versatile counter module designed to meet the demands of modern industrial automation systems. With its precise 32-bit resolution, it can accurately count pulses from incremental encoders up to 1 MHz.

    This counter module features two inputs for INC RS422 signals at up to 1 MHz and two additional inputs for HTL signals at up to 20 kHz. This allows it to handle a wide range of counting tasks, from simple pulse counting to complex position and phase difference measurements.

    The CNT204/R operates within a temperature range of 0°C to +40°C and is protected by an IP20 rating and NEMA 1 enclosure, making it suitable for use in a variety of industrial settings. Its robust design ensures reliable performance even in challenging environmental conditions.

    For ease of installation and maintenance, the module has a compact size and low power consumption, requiring only 40 mA at 24 V plus an additional 1.2x current consumption of the encoders. It is fully compliant with international standards such as CE, C-Tick, UL, cUL, and ClassSIL3/PLe.

    The CNT204/R is a reliable solution for any application requiring accurate and dependable counting, including extruders, elevator controls, conveyors, wire drawing machines, pumps, and bridle controls.
