Model:2094-AC09-M02

Brand:Allen-Bradley

Series:Kinetix 6000

Weight:5.1 pounds (2.31 kilograms)

Power Capacity:12 kW

Efficiency:95%

Input Voltage:200 to 230 Volt AC

Output Voltage:325 Volt DC nominal bus

Converter Capacity:6 kW

Frequency Range:47 to 63 Hertz

Line Loss Ride Through:20 milliseconds

Short-Circuit Current Rating:200,000 Amps symmetrical

Data Retention:20 years

Interface:SERCOS, EtherNet/IP

Safety Feature:ISO 13849-1 PLe/SIL3-certified Safe-Torque Off

Mounting Type:Rail mount

Operating Temperature:0 to 50 degrees Celsius

Power Dissipation:14 to 46 Watts @ various utilization percentages

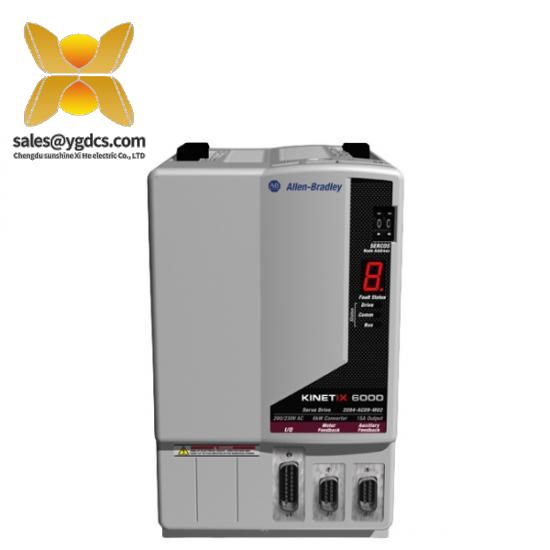

    The Allen-Bradley 2094-AC09-M02 is a robust and efficient Integrated Axis Module (IAM) designed specifically for advanced motion control applications within industrial automation. Its inclusion of an integrated Safe-Torque Off (STO) functionality ensures compliance with safety standards, providing unparalleled reliability in high-risk environments.

    Featuring a wide range of connectors on its front panel, including Contactor enable (CED), DC bus/AC input power (IPD), Control power (CPD), Motor power (MP), Motor/resistive brake (BC), and I/O (IOD) connectors, this module seamlessly integrates with existing systems, enhancing productivity and reducing setup times.

    With a frequency range of 47 to 63 Hertz and compatibility with a broad spectrum of input voltages, the 2094-AC09-M02 is versatile enough to meet diverse industrial needs, delivering optimal performance across various applications.

    Equipped with advanced features like a 200,000 Amps symmetrical short-circuit current rating, this module ensures exceptional durability and reliability. Its 20-year data retention capability facilitates seamless maintenance and system management.

    The Allen-Bradley 2094-AC09-M02 boasts a user-friendly design, incorporating a seven-segment display for clear operational status indication and easy troubleshooting. Its integration with ControlLogix controllers through the SERCOS interface further enhances its utility in complex automation systems.
