Product Type:Flex I/O Digital DC Output Module

Allen Bradley Type Designation:PLC

Number of Outputs:16

Mounting:DIN Rail

Sourcing Current:8.0A

On-state Voltage Nominal:24V DC

Output Current Rating:8.0A

Flexbus Current:60 mA @ 5V DC

Power Dissipation:5.0 W @ 31.2V DC

Inputs:Not Applicable – Dedicated for Outputs

Electronic Fusing:Yes

Operating Voltage:24V DC

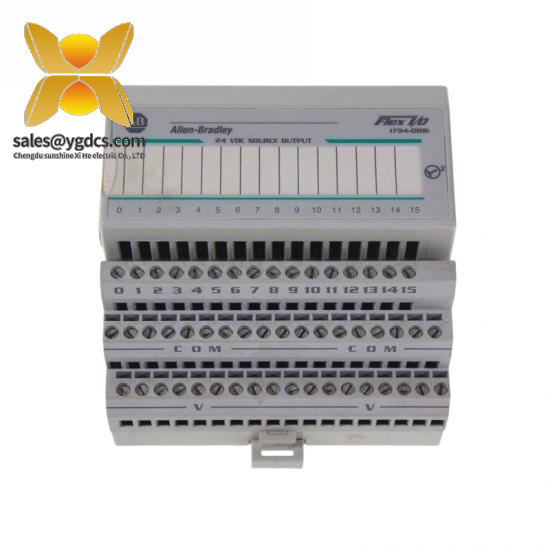

    The Allen Bradley 1794-OB16 is an essential component in modern industrial control systems, designed to provide reliable and efficient digital output capabilities. It seamlessly integrates into Allen-Bradley’s PLC family, enhancing system performance and reliability.

    Equipped with 16 dedicated outputs, this module is ideal for applications requiring precise control over actuators, motors, or other electrical devices in industrial settings. Its robust design ensures longevity and minimal maintenance requirements, even under harsh environmental conditions.

    With a sourcing current of 8.0A and an on-state voltage nominal at 24V DC, the 1794-OB16 provides a powerful output that can drive a wide range of loads efficiently. The inclusion of electronic fusing protects against short circuits and ensures safe operation.

    The Flexbus Current of 60 mA @ 5V DC allows for smooth data communication with other components in the system, facilitating seamless integration and enhanced system responsiveness. The power dissipation of 5.0 W @ 31.2V DC indicates its energy efficiency, contributing to overall system economy.

    DIN rail mounting makes installation quick and straightforward, allowing for easy integration into existing panel configurations. This flexibility ensures compatibility with a variety of industrial setups, making the Allen Bradley 1794-OB16 a versatile choice for various applications.
