Processor Type:CompactLogix 5370 L3

Ethernet Capability:Dual Ethernet with DLR

Memory Size:1MB

USB Port:1x Programming/Downloading

Ethernet Ports:2 x EtherNet/IP

Digital I/O:(16) 24V DC Inputs, (16) 24V DC Outputs

I/O Expansion:8 via 1734 POINT I/O

Ethernet IP Nodes:8

Power Supply:24V DC

Backplane Compatibility:Uses POINT I/O (1734)

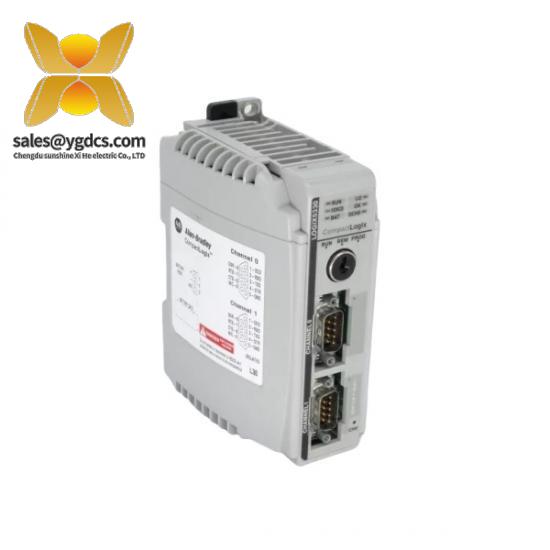

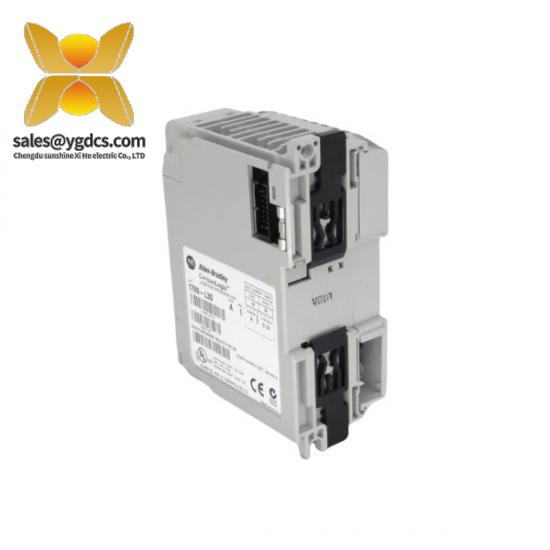

    The Allen-Bradley 1769-L30 Processor Module is a cornerstone component for modern industrial automation systems. It seamlessly integrates with CompactLogix, ControlLogix, and MicroLogix PLCs, ensuring compatibility across various control platforms.

    With its dual Ethernet ports, this module enables robust communication networks, facilitating real-time data exchange between PLCs and other devices on the same network. This capability is crucial for managing complex, distributed manufacturing processes efficiently.

    Equipped with 1MB memory, the 1769-L30 provides ample space for storing program code and data, ensuring flexibility and scalability for future upgrades and expansions. The inclusion of a USB programming port further simplifies the setup and maintenance process, offering users a convenient way to download and update software.

    Featuring 8 I/O expansion slots, this module supports a wide range of input/output configurations, catering to diverse control needs. It ensures that systems can be tailored to specific applications without compromising on functionality or performance.

    Adaptable to a variety of environmental conditions, the 1769-L30 is designed to withstand the rigors of industrial environments. Its operating temperature range from -10°C to 60°C and non-condensing humidity levels make it suitable for deployment in most industrial settings, enhancing reliability and longevity.
