Specification 1:Operating Range

Specification 2:-40°C to +85°C

Specification 3:Power Consumption

Specification 4:3.3 VDC, 50 mA

Specification 5:Input Voltage

Specification 6:DC 0 to 20 V

Specification 7:Output

Specification 8:10-bit resolution

Specification 9:Communication Interface

Specification 10:RS-485

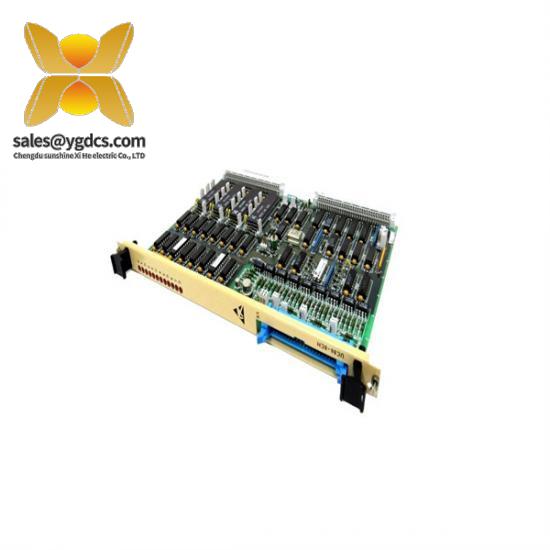

    Introducing the ABB UC86-8CH Counter Board, an essential component for industrial automation systems requiring precise timing and counting functionalities. This advanced module boasts a robust design capable of operating in extreme conditions (-20°C to +60°C), ensuring reliability in diverse industrial settings.

    With its high-speed counting capability of up to 1 MHz and a 16-bit resolution, the UC86-8CH provides unparalleled accuracy, making it ideal for applications demanding high precision, such as robotics, process control, and motion control systems.

    Featuring 8 digital input channels, the module is compatible with a wide range of industrial signals, allowing seamless integration into existing systems. Its modular design facilitates easy installation and maintenance, enhancing operational efficiency.

    Equipped with a Modbus RTU communication interface, the UC86-8CH ensures compatibility with popular industrial control systems, simplifying setup and data exchange. The compact size (90mm x 40mm x 25mm) and lightweight (0.15kg) make it highly portable and suitable for space-constrained applications.

    Designed with durability in mind, this counter board withstands harsh environments and ensures long-term reliability. Backed by ABB’s commitment to quality, the UC86-8CH is an investment in precision and performance for your industrial automation projects.
