Place of Origin:Switzerland

Model Number:SDCS-PIN-52

Custom Processing:Yes

Serial Number:Not applicable

Brand:ABB

Item Number:SDCS-PIN-52

Output Frequency:10 kHz

Certified Product:Yes

Series:SDCS-PIN

Material Coding:SDCS-PIN-52

Type Designation:Measurement Card

Dimension (H x W x D):76.2 x 58.4 x 25.4 mm

Net Weight:0.08 kg

Power Supply Voltage:12V DC

Input Signal Range:-5V to +5V

Number of Inputs:16

Communication Interface:RS485

Operating Temperature Range:-20°C to +55°C

Storage Temperature Range:-40°C to +70°C

Environmental Humidity:5% to 95% non-condensing

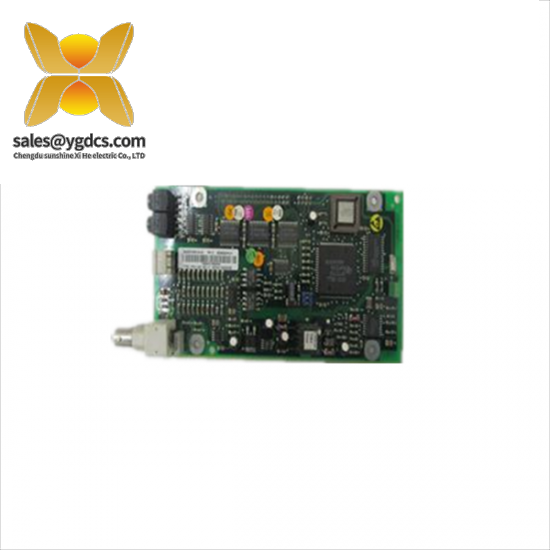

    The ABB SDCS-PIN-52 Measurement Card is engineered to meet the stringent requirements of industrial environments, featuring robust construction and enhanced durability against harsh conditions. It supports a wide range of input signals, ensuring compatibility with diverse sensors and measurement devices commonly used in manufacturing processes.

    With its intuitive design, the card facilitates easy integration into existing ABB control systems, streamlining setup and reducing downtime. The onboard microcontroller processes data with high speed and precision, delivering real-time information essential for process optimization and monitoring.

    Equipped with a compact footprint, the SDCS-PIN-52 Measurement Card efficiently utilizes space on the control panel or cabinet, making it an ideal choice for both new installations and system upgrades. Its modular design allows for flexible configuration, enabling users to tailor the card to their specific needs without compromising performance.

    For optimal operation, the card requires a stable power supply within the specified voltage range, ensuring uninterrupted data acquisition and processing. Proper maintenance and regular calibration are recommended to maintain accuracy over time, guaranteeing reliable performance throughout its lifecycle.

    In addition to its technical capabilities, the ABB SDCS-PIN-52 Measurement Card comes with comprehensive documentation and support services, ensuring users have access to all necessary resources for installation, operation, and troubleshooting. This commitment to customer service underscores ABB’s dedication to providing long-term value and peace of mind to its clients.
