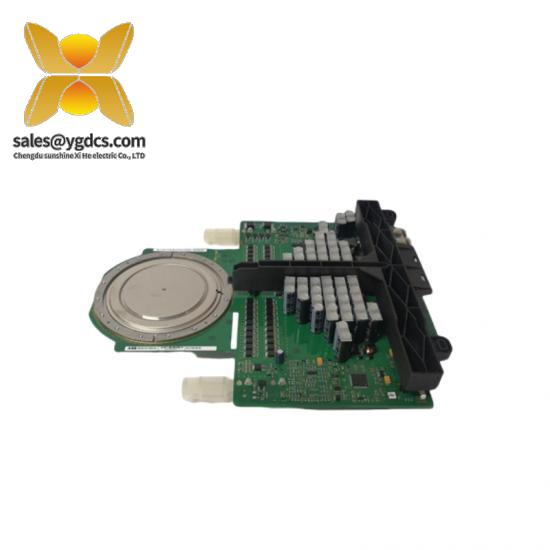

Module Type:IGCT

Model Number:3BHB020720R0002 | 5SHY3545L0016

Power Rating:3,500 VA

Operating Frequency:Up to 6 kHz

Cooling Method:Thermal Pad and Forced Air Cooling

Operating Temperature Range:-40°C to +70°C

Input Voltage Range:600V AC or 1000V DC

Output Current:1500 A at 200 V AC

Package Type:TO-3P

Electrical Insulation:Class 1, IP20 rated

    Engineered for demanding industrial environments, the ABB IGCT module boasts an innovative design that ensures exceptional durability and operational reliability. Its compact size and robust construction make it ideal for integration into complex control systems where space is at a premium.

    With a focus on efficiency, this module utilizes advanced semiconductor technology to minimize energy loss during power conversion processes. This results in enhanced system performance and reduced maintenance requirements, making it a cost-effective solution for long-term operation.

    Featuring a wide operating temperature range, from -40°C to +70°C, this IGCT module is suitable for use in a variety of extreme conditions, ensuring consistent performance regardless of environmental changes.

    The ABB IGCT module incorporates state-of-the-art thermal management systems, including a thermal pad and forced air cooling, which optimize heat dissipation and prolong the lifespan of the component.

    Ease of installation and compatibility with various industrial interfaces make this module a versatile choice for integrating into existing or new control systems. It is designed to meet the stringent standards set by the industry, ensuring seamless integration and minimal downtime.
